Your Reliable Partner for Premium Sandwich Panel
Classification and Characteristics of PUF Sandwich Panels
Facing
thickness
Thickness Available:
30mm 40mm 50mm 60mm 80mm100mm120mm
Exploring the Manufacturing Process of PUF Sandwich Panels
Fast To Construct
Sandwich Panel Manufacturers manufacture sheets at their facility, facilitating rapid installation at the site. These panels are also extremely straightforward to install, reducing the time required for installation.
Insulation – Heat Proof
Featuring sandwich panels engineered with premium Rigid Polyurethane Foam (PUF), stand strong against the elements. This high-performance insulation acts as a shield, defending your building from extreme temperatures, rain, wind, and even UV rays. Choose our panels for enduring protection and peace of mind for years to come.
Strong Load Bearing
The Sandwich Panels are engineered to endure compressive loads of up to 1 ton per square foot. Their remarkable load-bearing capacity allows them to handle substantial weight, whether live or dead, across considerable distances. Moreover, their inherent strength reduces the necessity for elaborate support structures, rendering them an optimal selection for various construction endeavors.
Edge Protect Technology
EDGE PROTECT technology offers an innovative solution for sealing the edges of sheet steel, enhancing durability and protecting against corrosion.
Weather Shield For Ultra Long Life
As a leading sandwich panel manufacturer, we offer panels with Weather Shield coating technology. This extra-thick layer of paint acts as a protective shield, safeguarding your building from harsh weather conditions. Its UV resistance ensures lasting performance, preventing fading or cracking under the sun’s rays. Choose our innovative panels for superior protection and long-lasting beauty for your walls and roofs.
Technical Specifications of PUF Sandwich Panels
| Panel thickness available | 30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm |
| Panel total width | 1070mm |
| Panel effective width | 1000mm |
| Panel length available | 1000mm-15000mm |
| Density | 40± 2kg/m3 |
| Thermal conductivity | 0.024-0.03 W/m |
| Temperature range | -40+800C |
| CFC / HFC | Free from CFC / HFC |
| Type of foam | B1, B2, B3, PIR |
| Heat transfer co-efficient | -0.022W/M2*k |
| Pressure | 0.10Mpa |
| Top coat | 5 + 15 micron |
| Back coat | 5 + 5 micron |
| 500h (ECCA TB) | 100 h (ASTM D 2247) |
CLASSIFICATION BASED ON THICKNESS OF PANEL
50mm puf panel
50mm panels are the most ideal thickness of puf sheet. They offer the best mix of insulation, strength and cost. These are a good choice for all constructions like roof top room, hospital floor, school classrooms, roof top restaurant construction, penthouse etc.
30mm puf panel
30mm panels are the most economical type of panel. They are a good choice as an alternative for metal roofing sheets.
65mm puf panel
65mm panels are a good choice for applications where high levels of insulation are required and where extreme cold or heat is a concern, such as refrigerated warehouses and cold storage facilities
40mm puf panels
40mm panels are thicker than 30mm panels and offer more insulation and strength. They are a good choice for applications where budget is is important factor, such as servant classrooms, staff quarters, temporary offices etc.
105mm puf panel
105mm panels are the thickest type of panel available. They offer the highest levels of insulation and are a good choice for applications where extreme cold or heat is a major concern, such as sub-zero refrigerator, cryogenic chambers and blast freezers.
All things you need to know
Comprehensive Overview of Sandwich Panel Manufacturing: Types, Pricing, Features, and Beyond

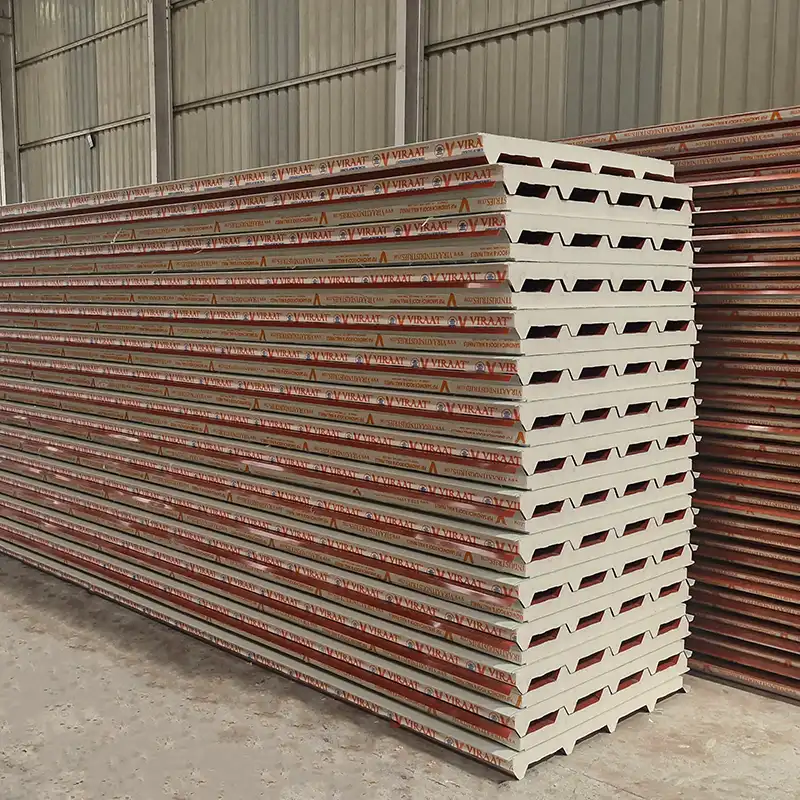

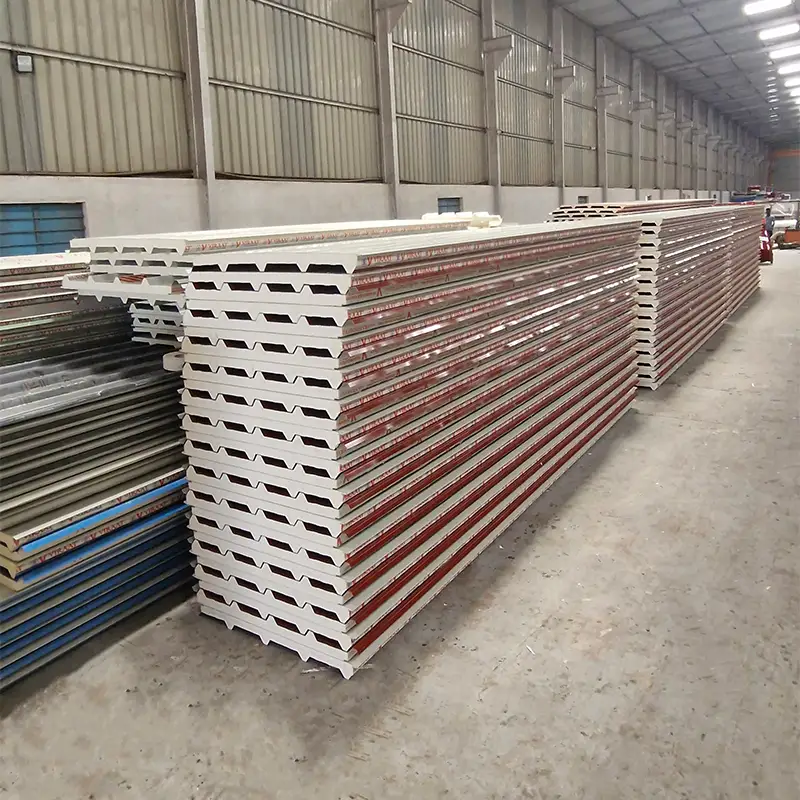

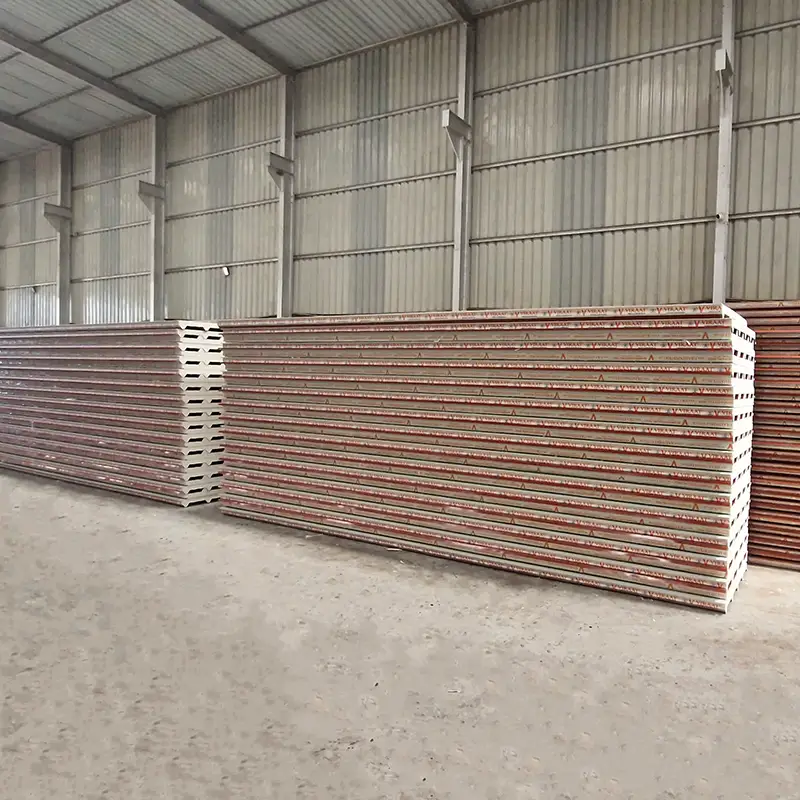

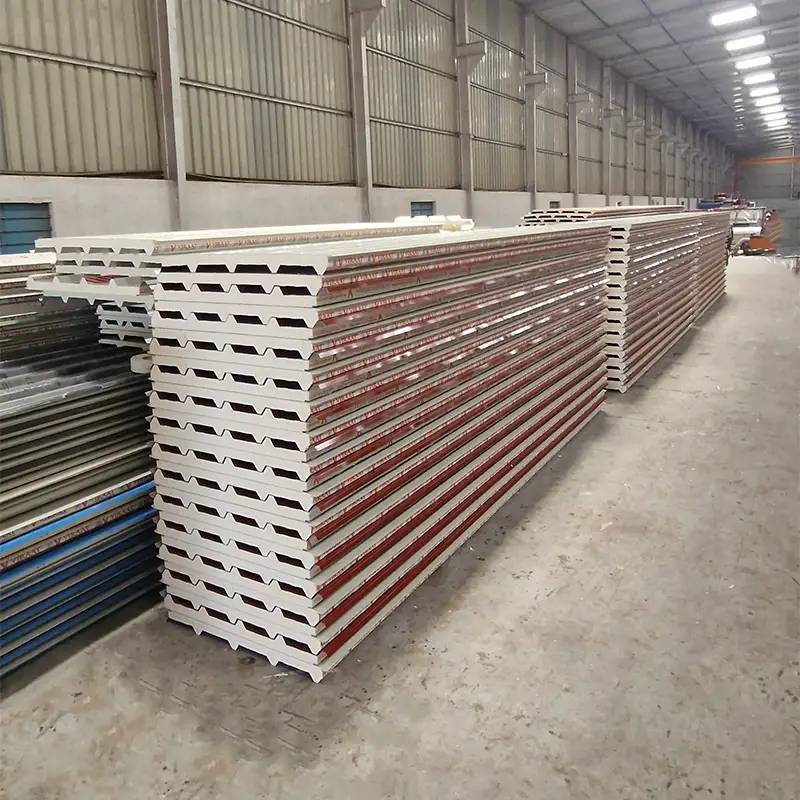

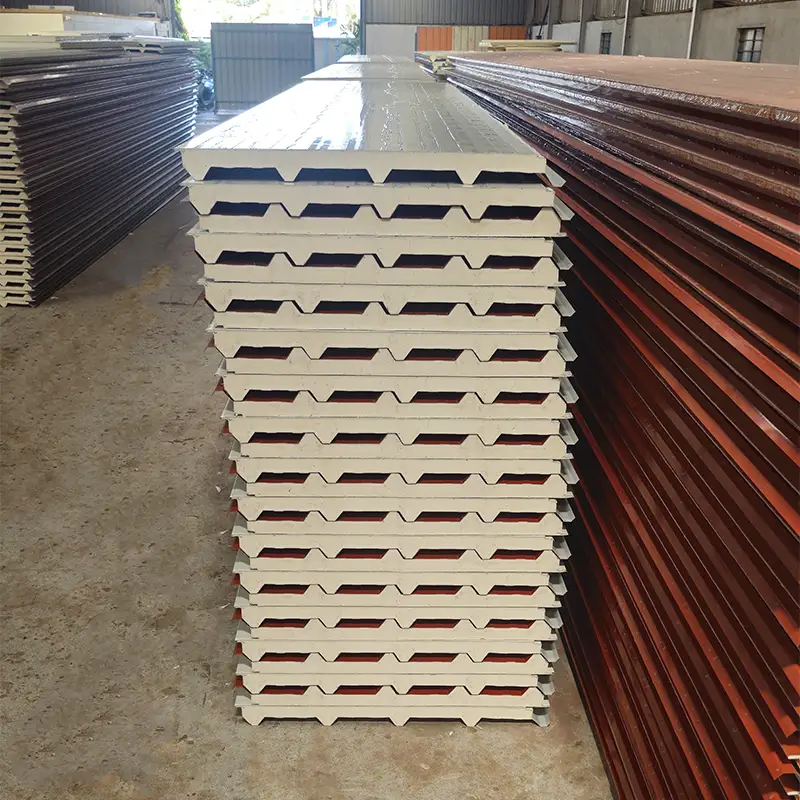

Puf Sandwich Roof Panels
Crafted from premium materials, our Sandwich Panels are engineered to endure even the harshest environments. With a diverse selection of finishes and hues, they seamlessly blend into any office or residential aesthetic. Perfect for use in warehouses, PEB industries, compact spaces, and rural retreats, these panels combine style with unparalleled resilience.
The panel is manufactured using a continuous line production method and features five corrugations with a 250mm pitch, along with exterior baby ribs for extra strength.
Weather Endurance
Withstand harsh climates effortlessly.
Energy Efficiency
Maintain optimal temperatures, saving on energy bills.
Versatile Application
Ideal for diverse spaces, from warehouses to residential homes.
Get a quote for your project and unlock unbeatable solutions tailored just for you

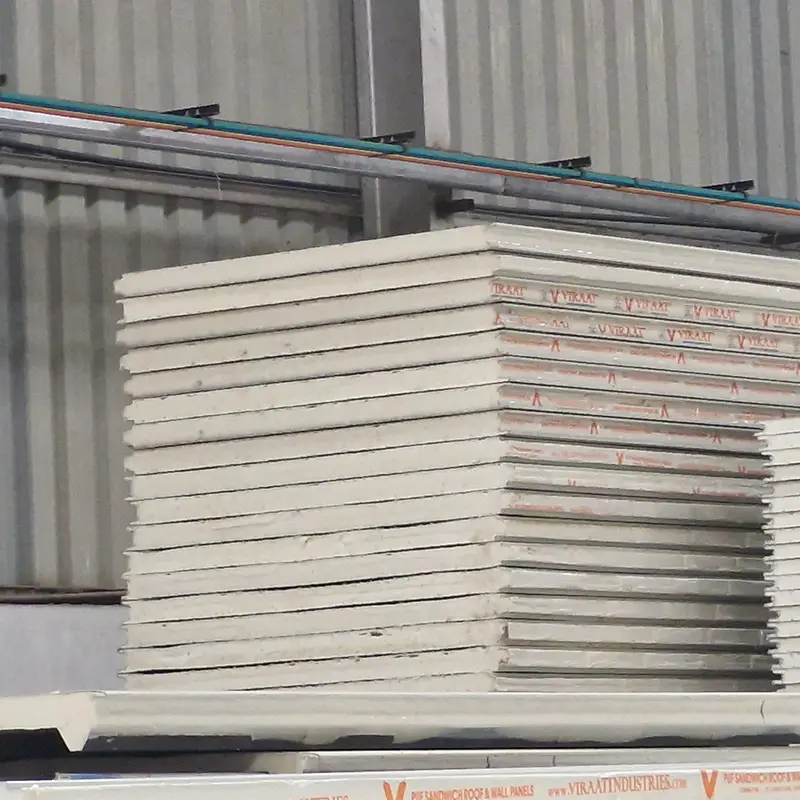

Puf Sandwich Wall Panels
Our Sandwich Panels offer a highly cost-effective alternative to traditional partitions and walls. Significantly more economical than masonry and aluminum alternatives, these prefabricated walls are suitable for both commercial and residential use. Featuring a lightweight yet durable polyurethane foam core sandwiched between robust cement board or steel sheets, they ensure toughness, longevity, and easy installation.
Available in various thicknesses, colors, and now introducing an innovative Wood Finish Texture option, these insulation panels make a versatile choice for both exterior walls and interior partitions.
Cost-Effective
40% to 50% cheaper than conventional walls/partitions.
Easy Installation
Lightweight design for effortless setup.
Versatile Design
Options for various thicknesses, colors, and textures.
Get a quote for your project and unlock unbeatable solutions tailored just for you.
